Bystronic Xact Smart 225
Description
1 used 7axis Bystronic Xact Smart 225/4100 down stroke hydraulic cnc pressbrake for sale
The Bystronic Xact Smart 225/4100 is a high-precision, industrial hydraulic down-stroke CNC press brake designed to deliver high-quality Swiss bending technology at an accessible price point. It is engineered for handling heavy-duty, versatile sheet metal fabrication with consistent accuracy across its entire bed length.
Key Technical Specifications
The standard configuration of the Xact Smart 225 model includes the following core mechanical specifications:
-
- Pressing Force: 225 tonnes (2250 kN) for high-capacity heavy bending. 225ton x 4metre
- Bending Length: 4100 mm (4.1 metres), providing ample room for long components.
- Standard Stroke: 200 mm
Operational Features & Versatility
- Axis Configuration: Configured with 5-axis back gauge, total axis; 7 (Y1,Y2X, X1, R, Z1, Z2).
- Age: 2019
- Crowning System: Features active, hydraulic, or automatic static crowning to counteract beam deflection, guaranteeing strict angle consistency over the entire 4-metre bed length.

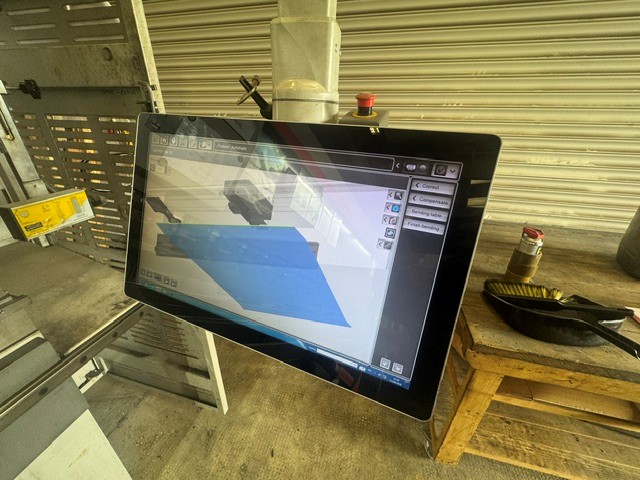

- Intuitive Software: Controlled through Bystronic’s User Interfaces, utilizing a large multi-touch screen that handles 3D simulation
Delivery and installation in your works available
