Bystronic PR 100×4100
Description

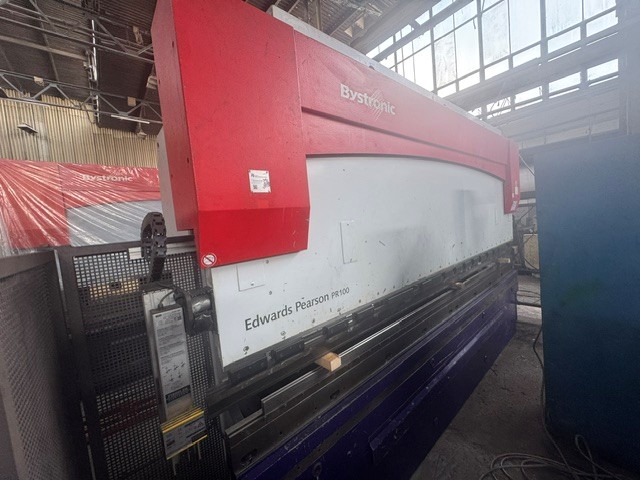

For Sale: Bystronic Edwards Pearson PR 100 CNC Pressbrake (4-Metre / 100-Ton)
Overview
An exceptional opportunity to acquire a high-quality, fully serviced Bystronic Edwards Pearson PR 100 CNC Pressbrake. Manufactured in 2005, this machine offers precise 4-metre bending capabilities combined with a robust 100-ton capacity. Featuring an advanced Cybelec control system and a built-in hemming table to produce flashings and safety edges on your sheet metal, it is an ideal, versatile asset for precision fabrication shops looking to increase throughput and accuracy.
Key Technical Specifications
- Manufacturer: Bystronic Edwards Pearson
- Model: PR 100 (Pressure Reference)
- Year of Manufacture: 2005
- Bending Length (Bed Size): 4,100 mm (4 Metres)
- Tonnage Capacity: 100 Tonnes
- Max Stroke: 215 mm
- Operating Speeds: 180 mm/s (Rapid Approach) | 10 mm/s (Bending) | 150 mm/s (Rapid Return)
- Installation: Free-standing unit (no floor pit required)
Advanced Control & Back Gauge Features

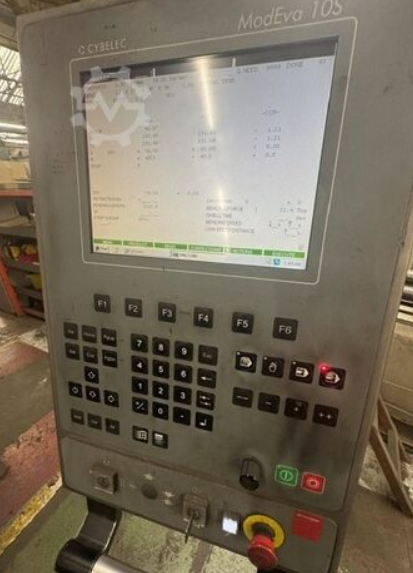

- CNC Control Unit: Cybelec Modeva 10S control system for intuitive programming and reliable operation.

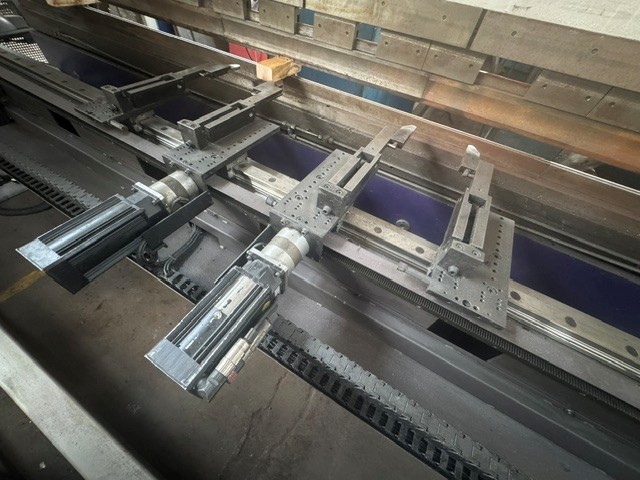

- Axis Configuration: 4-axis control featuring a 2-axis (X, R) back gauge.
- Back Gauge Fingers: Upgraded configuration with 4 back gauge fingers in total (includes 2 additional fingers) for superior material support.
Production Enhancements
- Integrated Hemming Table: Built-in table specifically engineered for producing high-quality sheet metal flashings and clean safety edges.
- Hydraulic Crowning: Auto-compensating hydraulic crowning system ensuring consistent, precise bend angles across the entire 4-metre length.
- Condition: Fully serviced, maintained to a high standard, and ready for immediate operational deployment.
Finance Available • Contact Us for details
